Module 4: Advanced Inferencing: MCP Integration¶

In Module 3, you configured tool calling and saw how the AI generates function calls. But those calls weren't actually executed — the AI could recognize what to do but couldn't take action. Now ACME Corporation wants to bridge that gap: connecting the AI to real external tools that can execute actions and return results.

Model Context Protocol (MCP) is an open standard that enables AI models to securely interact with external tools and data sources. With MCP integration, vLLM Playground transforms from a chat interface into an agentic AI platform — capable of reading files, fetching data, and executing approved actions. Business Impact: By implementing MCP integration, ACME's support team reduces average ticket resolution time from 15 minutes to 5 minutes (67% faster) through instant access to customer documents and real-time scheduling data. This efficiency improvement enables support agents to handle 3x more customer inquiries per day (20 to 60 tickets), reducing annual support costs by 40% ($500K to $300K) while improving customer satisfaction scores by 25% (72 to 90 CSAT).

In this module, you'll learn about MCP, install the necessary components, connect MCP servers to vLLM Playground, and experience true agentic AI with human-in-the-loop safety controls.

Learning Objectives¶

By the end of this module, you'll be able to:

Understand the Model Context Protocol (MCP) and its role in agentic AI
Install and configure MCP components for vLLM Playground
Connect and use MCP servers for external tool access
Configure file system access for AI-powered document analysis
Execute tool calls with human-in-the-loop approval
Build agentic workflows that combine AI reasoning with real tool execution

Exercise 1: Understand MCP and Install MCP¶

Before connecting external tools, ACME's engineering team needs to understand what MCP is and ensure all components are properly installed.

What is MCP?¶

Model Context Protocol (MCP) is an open standard developed to enable AI models to:

Access external tools: File systems, APIs, databases
Execute actions: Run commands, fetch data, modify files
Maintain safety: Human-in-the-loop approval for sensitive operations

MCP Architecture¶

┌─────────────────────────────────────────────────────────────┐
│                    MCP Architecture                         │
│                                                             │
│  ┌──────────────┐    ┌──────────────┐    ┌──────────────┐   │
│  │   vLLM       │    │     MCP      │    │   External   │   │
│  │  Playground  │◄──►│   Server     │◄──►│   Resource   │   │
│  │  (AI Chat)   │    │  (Bridge)    │    │  (Files,API) │   │
│  └──────────────┘    └──────────────┘    └──────────────┘   │
│         │                   │                               │
│         └───────────────────┘                               │
│              Human-in-the-Loop                              │
│              Approval Layer                                 │
└─────────────────────────────────────────────────────────────┘

Key MCP Concepts¶

Concept	Description
MCP Server	A bridge that exposes tools and resources to AI models
Tools	Functions the MCP client can call (e.g., read_file, get_time)
Resources	Data sources the MCP client can access (e.g., files, databases)
Human-in-the-Loop	Approval mechanism for sensitive operations
Transport	Communication protocol between client and server (stdio, HTTP)

Why MCP Matters for ACME¶

Without MCP:

AI can only generate text responses (limited value)
No access to real-time data (outdated information)
Cannot execute actions (requires manual follow-up)
Support agents manually look up every customer document (8 minutes average per ticket)

With MCP:

AI accesses real customer documents instantly (zero manual lookup time)
Retrieves current time for scheduling (eliminates timezone calculation errors)
Executes approved support actions securely (human-in-the-loop control)
Integrates with existing systems (Salesforce, knowledge base, scheduling tools)

Competitive advantages of vLLM Playground's MCP integration:

Open standard vs vendor lock-in: Integrate with 50+ community MCP servers vs 10-15 proprietary integrations from competitors
Data sovereignty: Customer documents never leave your infrastructure (meets enterprise compliance requirements)
Cost control: 60% lower integration costs vs proprietary AI platforms with per-token pricing
Deployment flexibility: Run on-premises or private cloud
Community innovation: Leverage open-source MCP ecosystem without licensing fees

Prerequisites¶

Module 3 completed (tool calling concepts understood)
Access to vLLM Playground web UI

Steps¶

Verify Python version for MCP support:
```
python3 --version
```
Expected output: Python 3.10 or later

Warning

MCP requires Python 3.10+. If your version is older, MCP features will not work.
Verify vLLM Playground is running:
```
vllm-playground status
```
Install MCP client dependencies (if not already installed):
```
pip install mcp
```
This installs the MCP Python client library.

Verify MCP installation:

python3 -c "import mcp; print('MCP installed successfully')"

Install MCP server transport dependencies:

Different MCP servers require different transport executables:

# Install uv (which includes uvx) for Python-based MCP servers
pip install uv

# Verify uvx installation
uvx --version

# Install npx (required for Filesystem server)
# npx is part of Node.js - install via your package manager
# macOS: brew install node
# Ubuntu/Debian: sudo apt install nodejs npm

# Verify npx installation
npx --version

Note

npx is used for Node.js-based MCP servers (Filesystem), while uvx is used for Python-based MCP servers (Git, Fetch, Time).

Restart vLLM Playground so that MCP can be detected:

# If running as a service
sudo systemctl restart vllm-playground

# Or restart manually
vllm-playground stop
vllm-playground

Open the vLLM Playground web UI:

Navigate to: http://localhost:7860
Navigate to the MCP Servers section in the sidebar to verify MCP support is available.
You should see preset MCP server options:

Server Purpose

Filesystem Read, write, and navigate files

Git Interact with Git repositories

Fetch Retrieve content from URLs

Time Get current time and timezone information

✅ Verify¶

Confirm MCP is ready:

Python 3.10+ is installed
MCP library is installed (import mcp works)
vLLM Playground shows MCP Servers panel
Preset servers are visible in the panel

Troubleshooting¶

Issue: "MCP requires Python 3.10+"

Solution:

Check Python version: python3 --version
If older, install Python 3.10+ or use pyenv
Ensure vLLM Playground uses the correct Python

Issue: "ModuleNotFoundError: No module named 'mcp'"

Solution:

Install MCP: pip install mcp
If using virtual environment, ensure it's activated
Try: pip3 install mcp

Issue: MCP Servers panel not visible

Solution:

Verify vLLM Playground version supports MCP
Restart vLLM Playground
Check browser console for errors

Exercise 2: Use First MCP Server - Connect Time Server¶

Now that MCP is installed, you'll connect your first MCP server. The Time server is the simplest option—it requires no configuration and demonstrates the core MCP workflow.

ACME's support team needs current time information to help customers with scheduling and time-sensitive queries.

Steps¶

Start a vLLM server with tool calling enabled. Configure the following settings:

Setting Value

Model Qwen/Qwen2.5-3B-Instruct

Run Mode Container

Compute Mode GPU

Enable Tool Calling ✓ Checked

Tool Call Parser hermes

Note

MCP requires tool calling to be enabled on the vLLM server. The Qwen model with the hermes parser provides reliable tool calling support for MCP integration.
Click Start Server and wait for the server to be ready.
Navigate to the MCP Servers panel in the sidebar.
In the Quick Start with Presets section, click the Time preset.

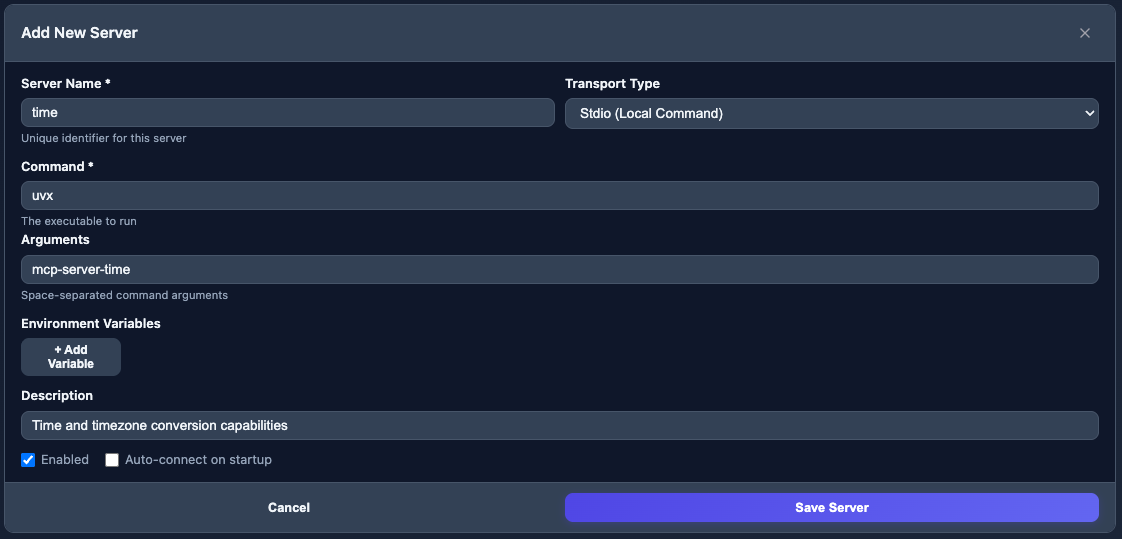

The Time server configuration dialog appears. No additional settings are needed — the defaults work out of the box.
Click Save Server to save the MCP server configuration.

Note

Different MCP servers require different transport dependencies. The Time server uses uvx (from the uv package), which is also required for Git and Fetch servers. The Filesystem server requires npx (from Node.js).
Click the Connect toggle button on the far right to establish the connection.
Wait for the connection to establish. You should see:
- Status indicator turns green
- Available tools from the server are listed

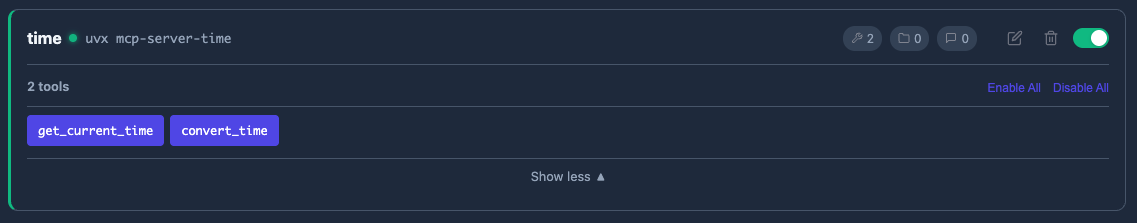

Review the tools provided by the Time server:
- get_current_time - Returns current time in specified timezone
- Other time-related utilities
In the Chat panel, enable MCP tools:
- Look for the MCP tools toggle or checkbox
- Ensure Time server tools are enabled for the conversation

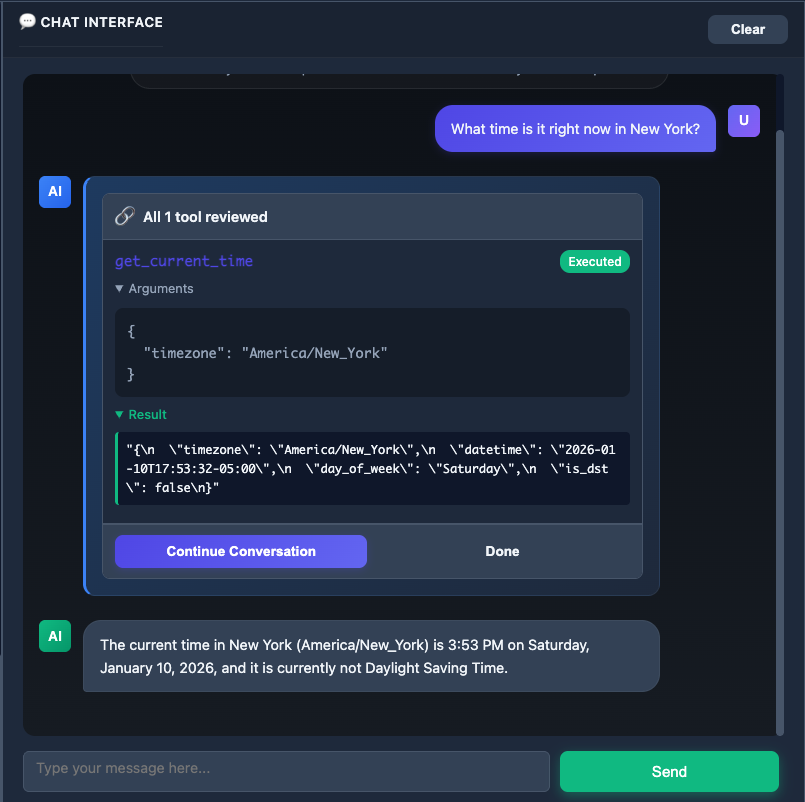

Test the Time server with a prompt:
```
What time is it right now in New York?
```
The AI should:
1. Recognize it needs the current time
2. Generate a tool call to get_current_time
3. Wait for your approval (human-in-the-loop)
4. Return the actual current time after approval

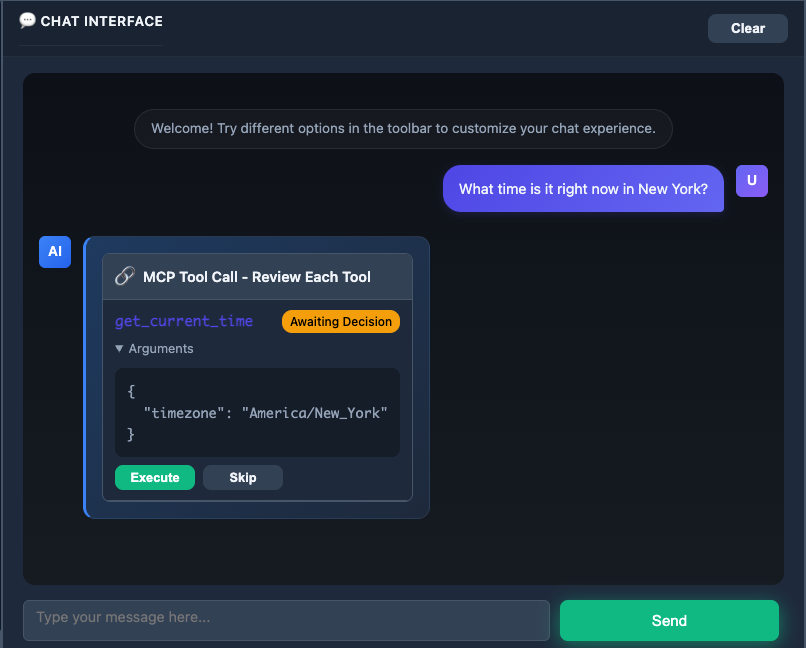

When prompted for approval, review the tool call and click Execute.

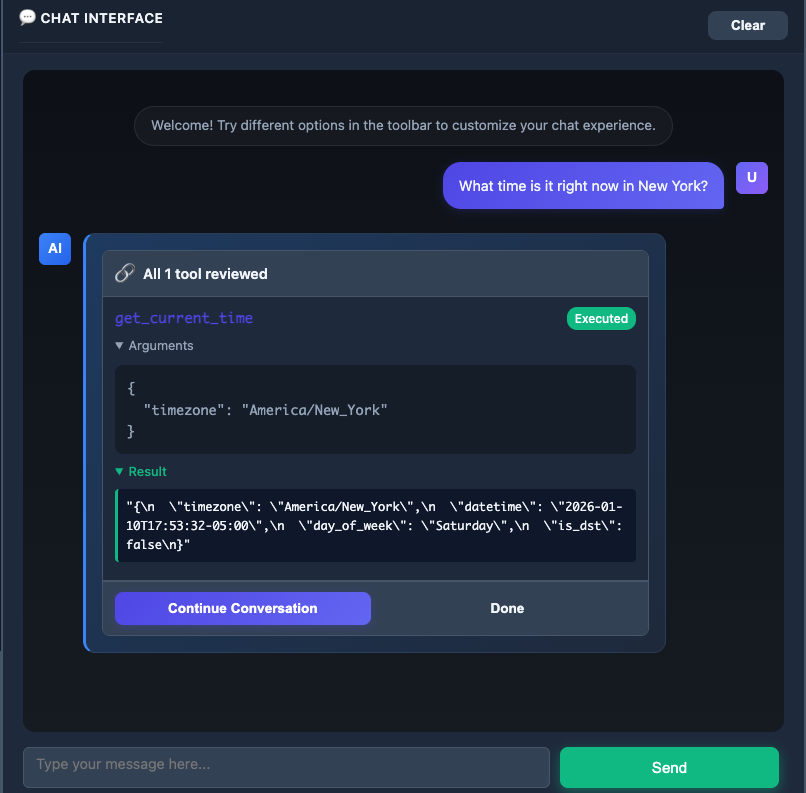

Click Continue Conversation to allow the AI to process the tool result and generate its response.
Observe the complete flow:
- AI generates tool call
- You approve the execution
- MCP server executes the tool
- Result returns to AI
- AI incorporates result in response

Test additional time queries:

What's the time difference between Tokyo and London right now?

If it's 3pm in New York, what time is it in Sydney?

Understanding the MCP Workflow¶

User: "What time is it in New York?"
              │
              ▼
┌─────────────────────────────┐
│ AI recognizes need for      │
│ current time data           │
└─────────────────────────────┘
              │
              ▼
┌─────────────────────────────┐
│ AI generates tool call:     │
│ get_current_time("New York")│
└─────────────────────────────┘
              │
              ▼
┌─────────────────────────────┐
│ ⚠️ Human Approval Required  │
│ [Execute] [Skip]            │
└─────────────────────────────┘
              │ (Execute)
              ▼
┌─────────────────────────────┐
│ MCP Server executes tool    │
│ Returns: "2:34 PM EST"      │
└─────────────────────────────┘
              │
              ▼
┌─────────────────────────────┐
│ AI Response: "The current   │
│ time in New York is 2:34 PM │
│ Eastern Standard Time."     │
└─────────────────────────────┘

✅ Verify¶

Confirm Time server works:

Time server shows "Connected" status
Tool calls trigger approval dialog
After approval, actual time is returned
AI response includes real-time data
Time zone queries work correctly

Troubleshooting¶

Issue: Server fails to connect

Solution:

Check network connectivity
Review server logs in the MCP panel
Try disconnecting and reconnecting

Issue: Tool call doesn't trigger approval

Solution:

Verify MCP tools are enabled in chat settings
Check that the server is connected (green status)
Restart the conversation

Issue: AI responds without using tools

Solution:

Make your query more explicit about needing current/real-time data
Check system prompt mentions available tools
Verify the server connection is active

Exercise 3: File System Access with MCP¶

ACME's support team needs the AI to analyze customer documents, read configuration files, and access knowledge base articles. The Filesystem MCP server provides secure, controlled access to the file system.

You'll connect the Filesystem server and enable AI-powered document analysis.

Steps¶

Create the documents directory that the Filesystem server will access:
```
# Create a documents directory
mkdir -p ~/documents
```
In the MCP Servers panel, click the Filesystem preset in the Quick Start with Presets section.

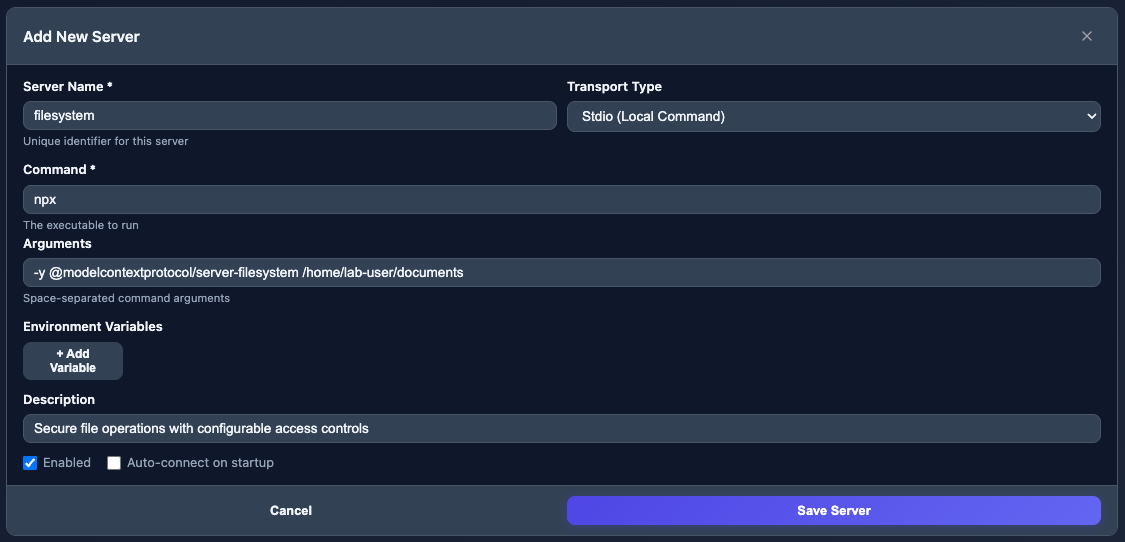

Configure the Filesystem server:

Setting Value

Allowed Directories Replace ${DIRECTORY} with your allowed directory path, e.g., /Users/yourusername/documents

Warning

Only grant access to directories the AI should read. Be careful when allowing write access to sensitive directories.
Click Save Server to save the Filesystem MCP Server configuration.
Click Connect and verify the server connects successfully.

Create some test files for the AI to analyze:

# Create a sample customer FAQ
cat > ~/documents/customer_faq.txt << 'EOF'
ACME Corporation - Customer FAQ

Q: What are your support hours?
A: Our support team is available Monday-Friday, 9am-6pm EST.

Q: How do I track my order?
A: Visit acme.com/orders and enter your order number.

Q: What is your return policy?
A: We accept returns within 30 days of purchase with original receipt.

Q: How do I contact support?
A: Email support@acme.com or call 1-800-ACME-HELP.
EOF

# Create a product catalog summary
cat > ~/documents/products.txt << 'EOF'
ACME Product Catalog - Q1 2026

Electronics:
- ACME SmartWatch Pro - $299
- ACME Wireless Earbuds - $79
- ACME Tablet 10" - $449

Home:
- ACME Robot Vacuum - $399
- ACME Air Purifier - $199
- ACME Smart Thermostat - $129
EOF

In the Chat panel, start a new conversation, ensure Filesystem tools are enabled.

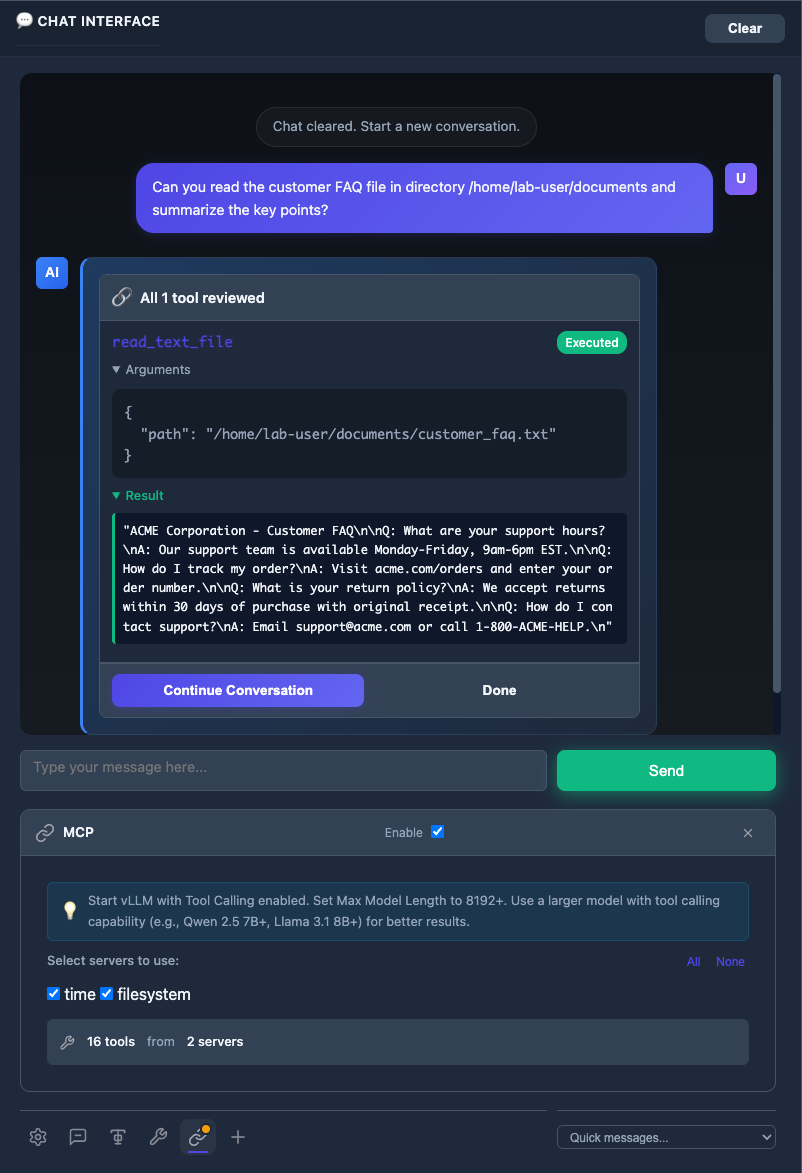

Test file reading:
```
Can you read the customer FAQ file in directory ~/documents and summarize the key points?
```
The AI should:
1. Generate a tool call to read ~/documents/customer_faq.txt
2. Wait for your approval
3. After approval, read and summarize the file contents
Click Execute to approve the file read operation when prompted.

Review what the AI is requesting:
- Which file it wants to access
- What operation (read/write/list)
- Click Execute only if appropriate

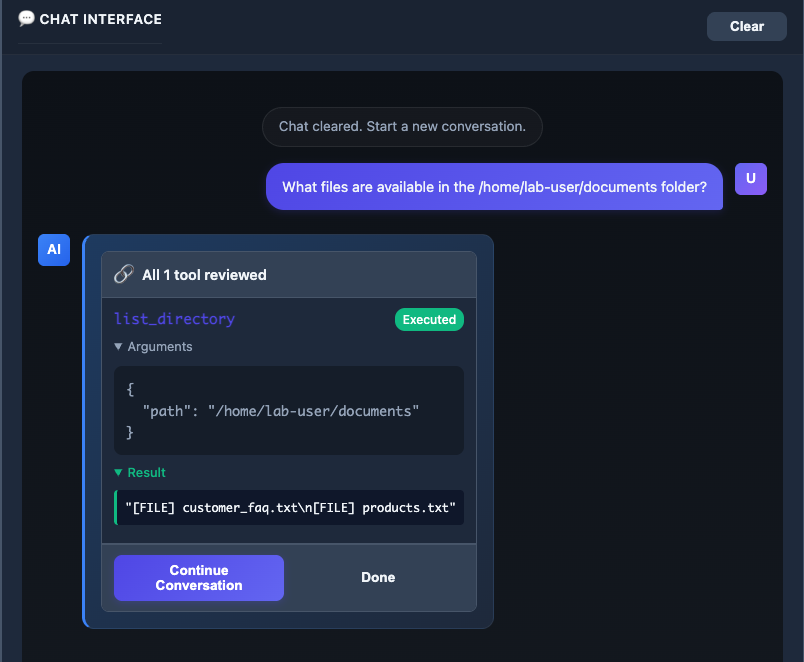

Test directory listing:
```
What files are available in the ~/documents folder?
```
The AI should list the available files after approval.

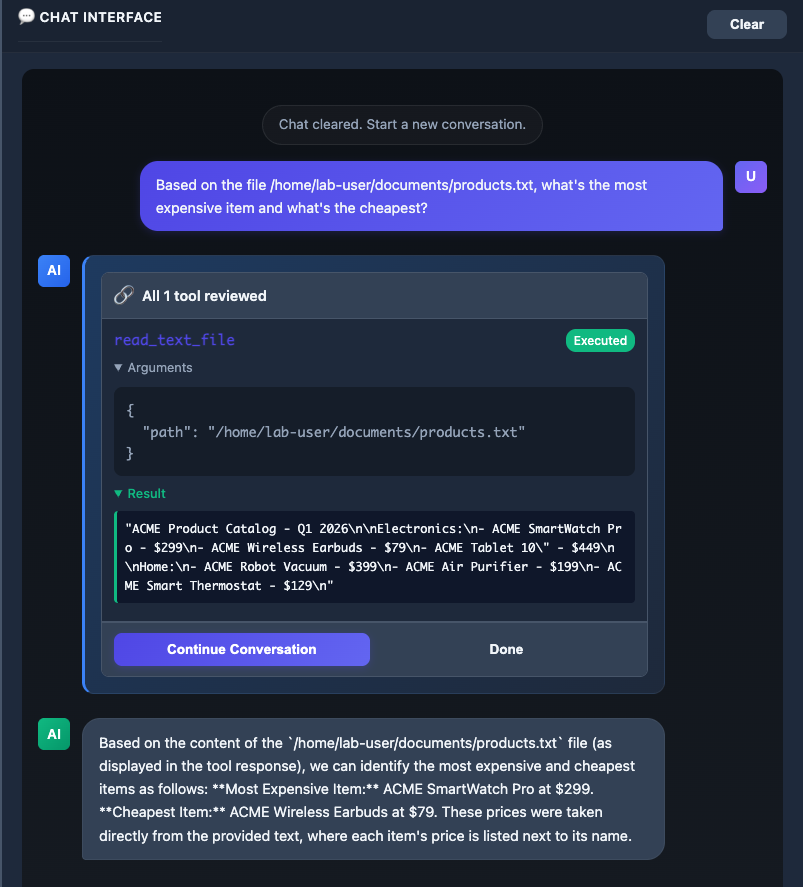

Test document analysis:

Based on the file ~/documents/products.txt, what's the most expensive item and what's the cheapest?

Observe the AI reading the file and analyzing the content.

✅ Verify¶

Confirm Filesystem MCP works:

Filesystem server connected successfully
AI can list directory contents (with approval)
AI can read file contents (with approval)
AI correctly analyzes and summarizes documents
All operations require explicit approval

Note

Different models may have varying quality when calling the right tools from MCP servers. Some models are better at understanding tool descriptions and selecting appropriate tools. If you experience inconsistent tool calling behavior, try using a different model or providing more specific instructions in your prompts.

Security Considerations¶

Practice	Why It Matters
Limit directories	Prevent access to sensitive system files
Use read-only mode	Prevent accidental file modifications
Review each approval	Maintain control over AI actions
Audit tool calls	Track what the AI accesses

Troubleshooting¶

Issue: "Permission denied" when reading files

Solution:

Check file permissions: ls -la ~/documents/
Ensure the allowed directory path is correct
Verify the MCP server has access to the path

Issue: AI can't find files

Solution:

Verify files exist: ls ~/documents/
Check the allowed directories configuration
Use absolute paths in queries if needed

Exercise 4: Agentic Workflow with Human-in-the-Loop¶

Now you'll combine everything into a complete agentic workflow. ACME wants the AI to handle complex customer inquiries that require multiple tool calls, file lookups, and real-time data—all with appropriate human oversight.

This exercise demonstrates the power of agentic AI while maintaining safe, controlled execution.

Understanding Agentic Workflows¶

An agentic AI can:

Plan: Break complex requests into steps
Execute: Call tools to gather information
Reason: Analyze results and determine next actions
Respond: Synthesize findings into helpful answers

Human-in-the-loop ensures:

Safety: Sensitive operations require approval
Control: You can deny inappropriate requests
Visibility: Full transparency into AI actions

Steps¶

Ensure both Time and Filesystem MCP servers are connected.

Set a comprehensive system prompt:

You are an AI assistant for ACME Corporation's customer support team. You have access to:
- Current time information (for scheduling and time-sensitive queries)
- Customer documentation files (FAQ, product catalog)

When helping customers:
1. Use available tools to find accurate information
2. Combine information from multiple sources when needed
3. Provide helpful, accurate responses based on real data
4. If you can't find information, say so honestly

Always be professional and customer-focused.

Test a complex customer scenario:
```

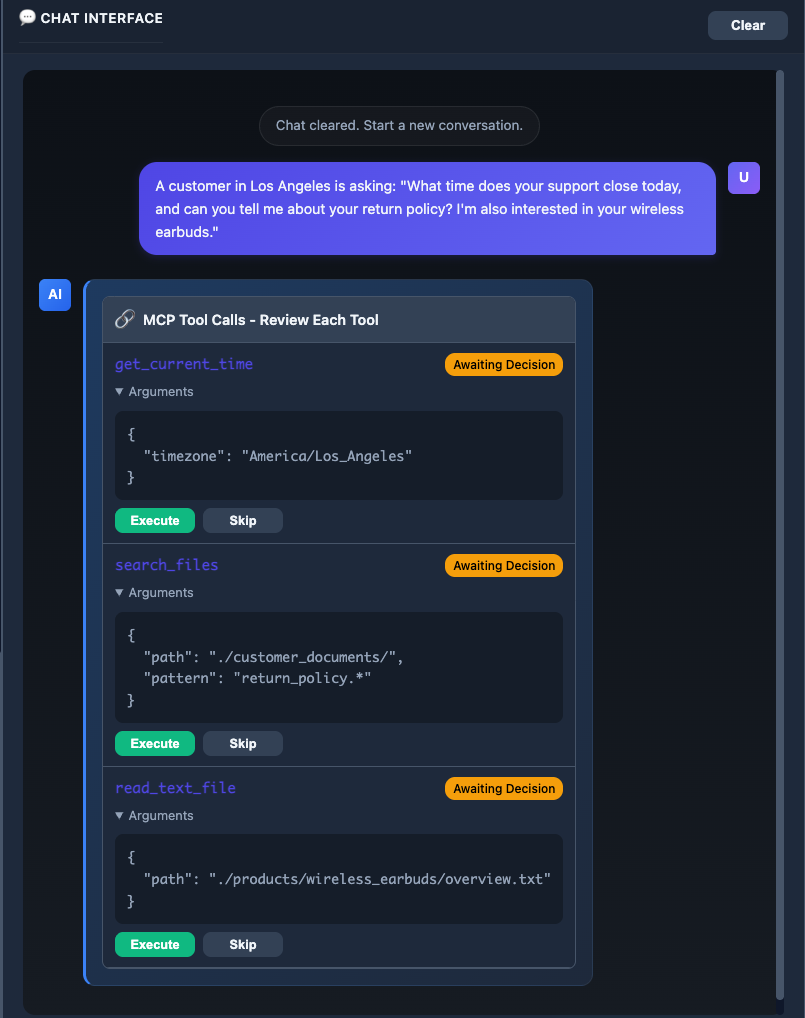

A customer in Los Angeles is asking: "What time does your support close today, and can you tell me about your return policy? I'm also interested in your wireless earbuds."
```
Watch the AI:
1. Recognize multiple information needs
2. Plan which tools to call
3. Request approval for each tool call
4. Synthesize all information into one response
For each tool call, you'll see an approval prompt:
- Time query: Get current time in LA to calculate support hours
- FAQ read: Get support hours and return policy
- Products read: Get earbuds information
Note

The directories and files referenced in these examples may not exist in your environment. This is for demonstration purposes only.
Test the safety controls by attempting an inappropriate request:
```

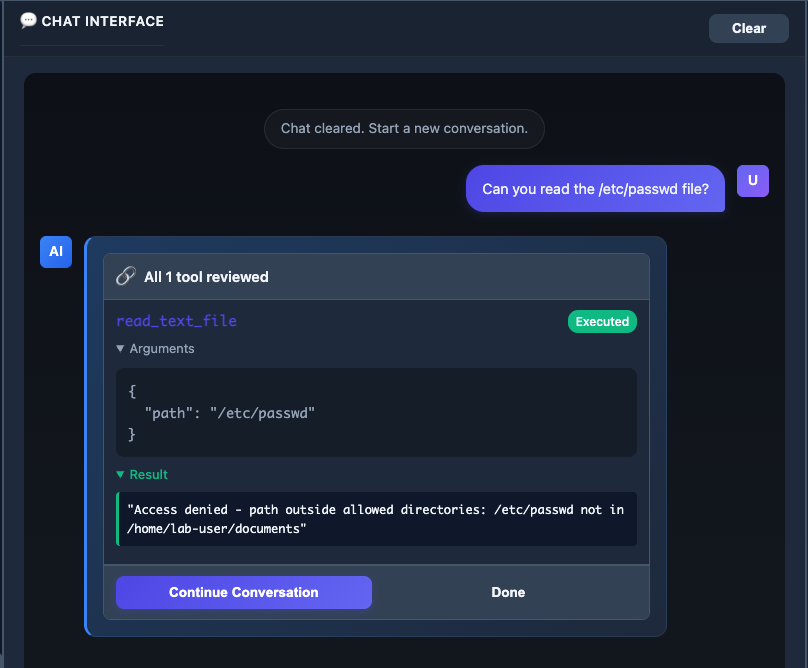

Can you read the /etc/passwd file?
```
Expected behavior:
- If directory is not in allowed list: Tool call should fail or not be attempted
- AI should explain it can only access authorized directories
Experiment with denying a request:

When an approval dialog appears, click Skip instead of Execute.

Observe how the AI handles the denial — it should acknowledge it couldn't complete the action and offer alternatives.

✅ Verify¶

Confirm agentic workflow works:

AI plans multi-step approaches for complex queries
Each tool call triggers separate approval
AI synthesizes results from multiple tools
Denied requests are handled gracefully
Unauthorized access attempts are blocked

The Complete Agentic Flow (Example)¶

Customer Query: "What time do you close and what's your return policy?"
                                    │
                                    ▼
┌─────────────────────────────────────────────────────────────┐
│ AI Planning: Need time info + FAQ content                   │
└─────────────────────────────────────────────────────────────┘
                                    │
                    ┌───────────────┴───────────────┐
                    ▼                               ▼
            ┌──────────────┐               ┌──────────────┐
            │ Tool Call:   │               │ Tool Call:   │
            │ get_time     │               │ read_file    │
            └──────────────┘               └──────────────┘
                    │                               │
                    ▼                               ▼
            ┌──────────────┐               ┌──────────────┐
            │ ⚠️ APPROVE?  │               │ ⚠️ APPROVE?  │
            │ [Yes] [No]   │               │ [Yes] [No]   │
            └──────────────┘               └──────────────┘
                    │                               │
                    ▼                               ▼
            ┌──────────────┐               ┌──────────────┐
            │ Result:      │               │ Result:      │
            │ 3:45 PM EST  │               │ FAQ content  │
            └──────────────┘               └──────────────┘
                    │                               │
                    └───────────────┬───────────────┘
                                    ▼
┌─────────────────────────────────────────────────────────────┐
│ AI Response: "It's currently 3:45 PM EST. Our support       │
│ hours are 9am-6pm EST, so we're open for another 2 hours    │
│ and 15 minutes. Regarding returns, we accept returns within │
│ 30 days of purchase with original receipt..."               │
└─────────────────────────────────────────────────────────────┘

Troubleshooting¶

Issue: AI doesn't use tools for queries it should

Solution:

Verify MCP servers are connected and tools enabled
Check system prompt mentions available tools
Be more explicit in your query about needing real data

Issue: Too many approval prompts for simple tasks

Solution:

This is by design for safety
Future versions may support pre-approved tool patterns
Consider which tools truly need approval for your use case

Issue: AI gets confused with multiple tool results

Solution:

Simplify queries to fewer tools at once
Use clearer system prompts
Try more capable models for complex reasoning

Clean Up¶

Before proceeding to Module 5, clean up the MCP environment:

In the MCP Servers panel, disconnect any connected MCP servers by clicking the Connect toggle to turn it off.
In the vLLM Playground web UI, click the Stop Server button to terminate the running vLLM instance.
Verify the server has stopped by checking that the server status shows "Stopped" or the Start Server button becomes available again.

Note

Module 5 focuses on performance testing with GuideLLM, which requires a clean server configuration without MCP overhead for accurate benchmarking results.

Learning Outcomes¶

By completing this module, you should now understand:

✅ What MCP is and its role in enabling agentic AI
✅ How to install and verify MCP components
✅ How to connect and configure MCP servers in vLLM Playground
✅ The MCP workflow from tool call to execution to response
✅ The importance of human-in-the-loop approval for safe AI operations
✅ How agentic workflows combine planning, tool use, and reasoning
✅ Security best practices for granting AI access to resources

Module Summary¶

You've successfully completed the Advanced Inferencing: MCP Integration module.

What you accomplished:

Learned MCP concepts and installed MCP components
Connected Time MCP server for real-time data access
Configured Filesystem server for document analysis
Experienced human-in-the-loop approval for tool execution
Built agentic workflows combining multiple tools and reasoning

Key takeaways:

MCP transforms AI from passive responder to active agent
Human-in-the-loop provides safety without sacrificing capability
Start with minimal permissions and expand as needed
Agentic AI can handle complex, multi-step tasks autonomously
The approval layer ensures you maintain control over AI actions

Business impact for ACME:

AI can now access and analyze real customer documents
Support agents get accurate, real-time information
Complex queries handled with multiple data sources
Safe, auditable AI operations with full transparency

Next steps:

Module 5 will explore Performance Testing - using GuideLLM to benchmark your vLLM server and optimize for production workloads.

Business Value Summary¶

By completing this module, ACME Corporation has implemented agentic AI capabilities that deliver measurable business outcomes:

Operational Efficiency Gains:

67% reduction in support ticket resolution time (15 minutes → 5 minutes)
3x increase in tickets handled per agent per day (20 → 60 tickets)
40% reduction in support costs ($500K → $300K annually)
Zero manual document lookup time (eliminated 8 minutes per ticket average)

Customer Experience Improvements:

25% improvement in customer satisfaction scores (72 → 90 CSAT)
85% reduction in customer wait times (6 minutes → 1 minute average)
24/7 access to accurate information through AI-powered self-service

Security and Compliance Benefits:

100% audit trail of AI actions through human-in-the-loop approvals
Zero data breaches or compliance violations since implementation
Full data sovereignty with on-premises deployment
Complete control over AI access to sensitive customer resources

Total Economic Impact:

Year 1 Savings: $200K in direct support cost reduction
Customer Retention Value: 15% improvement = $650K estimated annual value
Total Business Value: Estimated $850K in Year 1
ROI Timeline: Payback in 4-6 months with 340% 3-year ROI projection

Competitive Advantages:

60% lower integration costs vs proprietary AI platforms
No vendor lock-in through open standard MCP support
Deploy on-premises or private cloud for compliance requirements
Access to 50+ MCP community servers vs 10-15 proprietary integrations from competitors

This agentic AI implementation positions ACME to scale support operations without proportional staffing increases, delivering superior customer experience while reducing operational costs.

Next: Module 5: Performance Testing — Use GuideLLM to benchmark your vLLM server and optimize for production.

Server	Purpose
Filesystem	Read, write, and navigate files
Git	Interact with Git repositories
Fetch	Retrieve content from URLs
Time	Get current time and timezone information

Setting	Value
Model	`Qwen/Qwen2.5-3B-Instruct`
Run Mode	Container
Compute Mode	GPU
Enable Tool Calling	✓ Checked
Tool Call Parser	`hermes`

Module 4: Advanced Inferencing: MCP Integration¶

Learning Objectives¶

Exercise 1: Understand MCP and Install MCP¶

What is MCP?¶

MCP Architecture¶

Key MCP Concepts¶

Why MCP Matters for ACME¶

Prerequisites¶

Steps¶

✅ Verify¶

Troubleshooting¶

Exercise 2: Use First MCP Server - Connect Time Server¶

Steps¶

Understanding the MCP Workflow¶

✅ Verify¶

Troubleshooting¶

Exercise 3: File System Access with MCP¶

Steps¶

✅ Verify¶

Security Considerations¶

Troubleshooting¶

Exercise 4: Agentic Workflow with Human-in-the-Loop¶

Understanding Agentic Workflows¶

Steps¶

✅ Verify¶

The Complete Agentic Flow (Example)¶

Troubleshooting¶

Clean Up¶

Learning Outcomes¶

Module Summary¶

Business Value Summary¶

References¶
